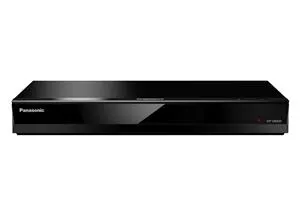

Panasonic DP-UB420EGK dp-ub420egk

BD-ROM Ultra HD Blu-ray/ FULL HD 3D/ BD-Video yes

BD-RE/ BD-RE DL (Ver.3) BDAV/ AVCHD/ AVCHD 3D/JPEG/ MPO yes

BD-R (Ver.1.3) / BD-R DL (Ver.2) BDAV/ AVCHD/ AVCHD 3D/ MKV/ JPEG/ MPO yes

DVD DVD-Video yes

DVD-R*1/ DVD-R DL*1/ DVD-RW*1 AVCHD/ MKV yes/ yes* (*DVD-R/ DVD-R DL)

DVD-Video/ DVD Video Recording yes

FLAC/ WAV/ ALAC/ DSD/ WMA/ AAC/ MP3/ AIFF yes (DVD-R/ DVD-R DL)

JPEG/ MPO yes (DVD-R/ DVD-R DL)

+R*1/ +R DL*1/ +RW*1 Video/ AVCHD yes

CD, CD-R/ -RW CD-DA/ DTS-CD yes

MKV yes (CD-R/ -RW)

FLAC/ WAV/ ALAC/ WMA/ AAC/ MP3/ AIFF yes (CD-R/ -RW)

JPEG/ MPO yes (CD-R/ -RW)

AUDIO SYSTEM Dolby Digital/ TrueHD yes (Decode and Bitstream Output*2)

Dolby Digital Plus yes (Decode and Bitstream Output*2)

DTS-HD Master Audio/ DTS-HD High Resolution Audio yes (Decode and Bitstream Output*2)

FLAC yes (Max. 192kHz/24bit )

WAV yes (Max.384kHz/32bit)

ALAC yes (Max. 96kHz/32bit (7.1ch), 176.4/192kHz/32bit (5.1ch))

DSD (DFF, DSF) yes (2.8MHz (2ch/ 5.1ch), 5.6MHz (2ch/ 5.1ch), 11.2MHz(2ch))

AIFF yes (Max.384kHz/32bit (2ch))

USB Slot yes(2)

Front 1 (USB 2.0 High Speed)

Rear 1 (USB 3.0 Super Speed)

Playback FLAC/ WAV/ ALAC/ DSD/ WMA/ AAC/ MP3/ AIFF yes

MKV/ MP4 (H.264/HEVC), TS (MPEG-2/H.264/HEVC) yes

MKV/ MP4/ MPEG-2/ AVCHD/ AVCHD 3D yes

JPEG/ MPO yes

HIGH QUALITY PICTURE HCX Processor for Ultra HD Blu-ray yes

HDR HDR10+ yes*3

Hybrid Log Gamma(HLG) yes

HDR Optimiser yes

4K Up-scaling 60p/50p/ 4.4.4 (HDMI2.0) yes*4*5

24p/ 25p yes*4*5

4K Direct Chroma Up-scaling yes*4

4K Networking (4K Video*6 Playback/ 4K JPEG Playback*4) yes

4K VOD yes*3 (NETFLIX, yesouTube, Amazon*7 etc?[TENTATIVE])

Picture Type Presets (Normal/ Cinema/ Fine Cinema/ Retro Cinema/ Animation/ Live)*8

Block/ Randam/ Mosquito Noise Reduction yes

Video on Demand in HD Quality yes

Ultra HD Premium yes

Deep Colour yes

x.v.Colour yes*9

HIGH QUALITY SOUND TWIN HDMI yes

Pure Audio on HDMI (HDMI Low Clock Jitter Process) yes

High Quality Network Audio Playback (DLNA) yes (FLAC/ WAV/ ALAC/ DSD/ WMA/ AAC/ MP3/ AIFF)

High Clarity Sound Premium yes

Digital Tube Sound yes (Up to 192kHz/ 32 bit)

Surround Re-Master yes*10 (Up to 192kHz/ 32 bit)

SMART FEATURE Viewing Experience Controlled via Voice(Google Assitant/ Amazon Alexa) yes

Remote Control yes(Simple)

Subtitle Position/Brightness Adjustment yes

HDAVI Control 5 (VIERA Link) yes

Mirroring with Smartphone/Tablet*11 yes

Internet Apps yes*12

Web Browser yes

Wireless LAN System yes (Built-in) IEEE802.11 a/b/g/n/ac

DLNA (Client & Renderer) yes

External HDD Playback yes*13

Network Drive Access yes

TERMINAL HDMI Output yes (2)

Optical Output yes

LAN (Ethernet) Terminal yes (for Ultra HD Blu-ray, DLNA, BD-LiveTM*14, Internet Apps*12 and Firmware Update)

OTHERS Video System PAL/ NTSC

Power Supply AC 220-240V, 50Hz

Power Consumption Normal Use 29W

Network Standby On 1W

Network Standby Off 0.3W

DIMENSIONS, WEIGHT Dimensions (W x H x D) 320 x 45 x 197 mm *16

Weight 1.4 kg

NOTE *1 Discs recorded and finalized on recording devices.

NOTE *2 HDMI connection required.

NOTE *3 Enabled by software update

NOTE *4 For 4K Up-scaling playback a TV with same resolution is required.

NOTE *5 For 4K/60p video, a high speed HDMI cable supporting 18 Gbps bandwidth is required.

NOTE *6 MP4(4K/25p,30p) bit rate up to 100Mbps/resolution up to 3840x2160.

NOTE *7 Amazon Video is available in UK, Germany and Austria only.

NOTE *8 Ultra HD Blu-ray and Photo (JPG/MPO) are not supported.

NOTE *9 This function is effective only when reproducing AVCHD data recorded with x.v.Color technology. The function cannot be used with BD-ROM or DVD-ROM discs. HDMI connection is required.

NOTE *10 CD sampling is done at 176.4/88.2 kHz.

NOTE *11 Compatible with AndroidTM devices, Ver. 4.2 and above and Miracast certified. For information on whether the smartphone, etc. supports Miracast, contact the manufacturer of the device.

NOTE *12 Requires broadband Internet service.

NOTE *13 The external HDD with capacities of 4TB or less in processing NTFS/ FAT32 data is supported. Playback is not possible with some external hard disk drives.

NOTE *14 To enjoy content, you will need to insert a USB (1GB or more of free space/ sold separately). Requires broadband Internet service.

NOTE *15 The analog 2-channel output terminal can also be used as an analog 7.1-channel output terminal.

NOTE *16 Excluding the projecting parts.

NOTE Specifications are subject to change without notice. All numbers given here are approximate.
