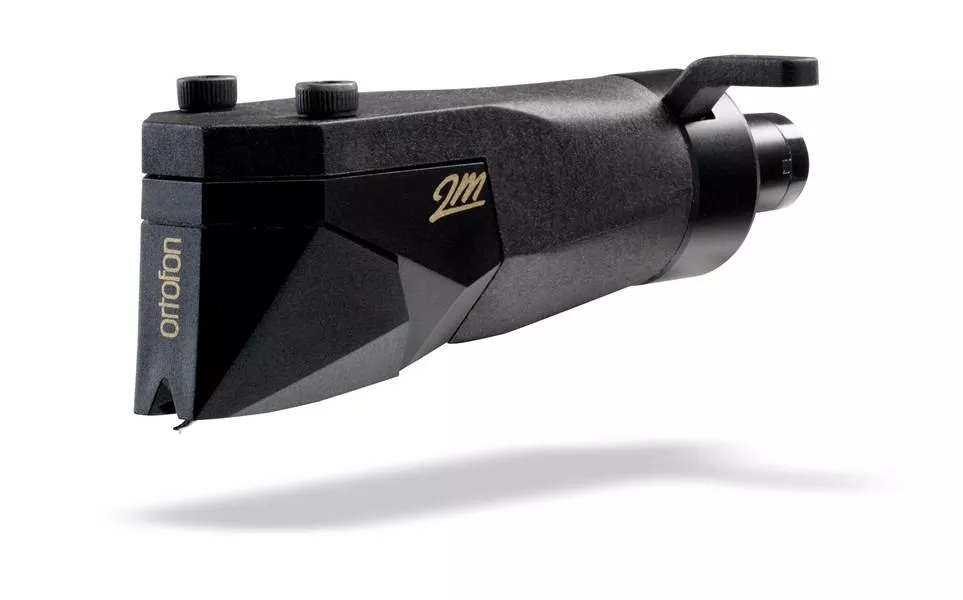

Ortofon 2M Black 2m-black
Beskrivelse
The 2M Black Series is the MM flagship from Ortofon
The 2M Black is graced with a Shibata diamond stylus – the same diamond as on the acclaimed MC Jubilee. Its slim, highly polished profile allows an exceedingly wide contact area to the groove walls and ensures notably detailed reproduction throughout the spectrum, including even the most high frequency groove information.
The cartridge body used for the 2M Black is manufactured from a newly-developed Lexan DMX Piano Black, a revolutionary material which ensures high rigidity while eliminating unwanted resonances.
The 2M Black uses a special upgraded engine, featuring split pole pins with a silver plated copper wire.
We have optimized the design for ease of mounting the cartridge, and the weight and size to fit the most common turntables on the market today. The 2M Series provides excellent compatibility when used in an assortment of playback systems and with a wide variety of phono preamps.
Udgangsspænding ved 1000 Hz, 5cm/sec. 5 mV
Kanal balance ved 1 kHz 1 dB
Kanal separation ved 1 kHz 26 dB
Kanal separation ved 15 kHz 15 dB
Frekvens område ved - 3dB 20 - 31.000 Hz
Frekvens respons 20 - 20.000 Hz + 2 / - 1 dB
Tracking ability ved 315Hz med anbefalet tracking force 80 µm
Compliance, dynamic, lateral 22 µm/mN
Stylus type Nude Shibata
Stylus tip radius r/R 6/50 µm
Tracking force range 1,4 - 1,7 g (14-217 mN)
Tracking force, anbefalet1,5 g (18 mN)
Tracking angle 20°
Intern impedans, DC modstand 1,2 kOhm
Intern induktans 630 mH
Anbefalet load modstand 47 kOhm
Anbefalet load kapasitans 150-300 pF
Cartridge farve, hus/stylus Sort/Sort
Cartridge vægt 7,2 g
